ZT 15系列手動可傾數控回轉主要用于加工中心和數控鏜銑床上，作為主機第四回轉軸，完成工件上的任意角度的孔、槽、平面以及曲線、凸輪等要素的加工，并可達到較高的精度。工作臺可以手動傾斜與水平面呈0~90度內的任意角度。

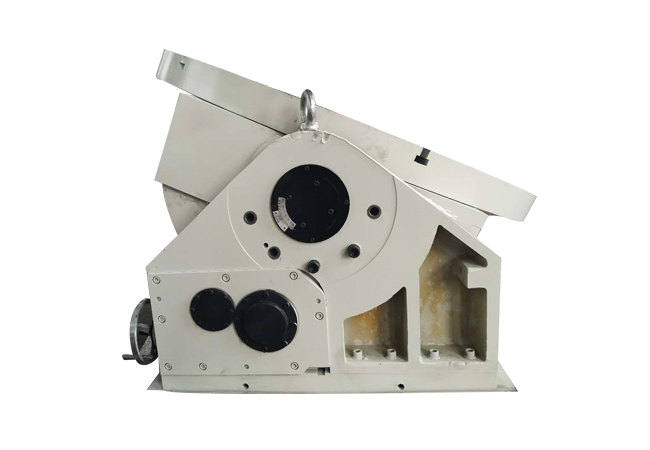

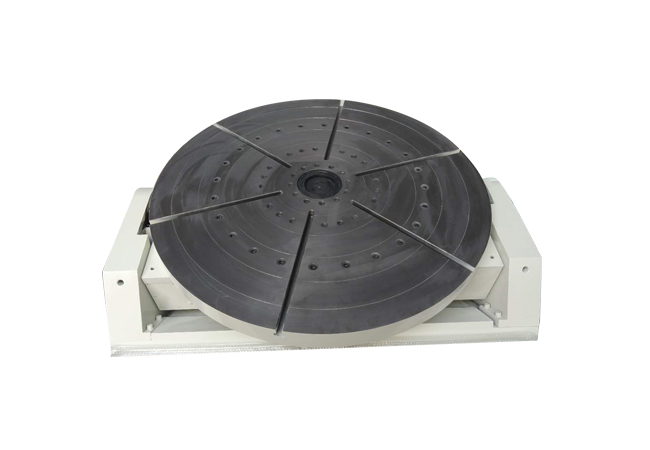

ZT 15 series NC rotary table is constructed co-mplete with an NCcontrollable rotary axis as well as a manual controllable tilting axis,and
mainly used  with CNC milling machine  and machining  center.  Incombination with main machine,holes,slots,cam,curving line can becarri ed out.In combination with main  machine,holes,slots,cam,curvingline  can be  carried out preisely.The table can  be tilted to any anglebetween 0 and 90 to horizontal by manual.
